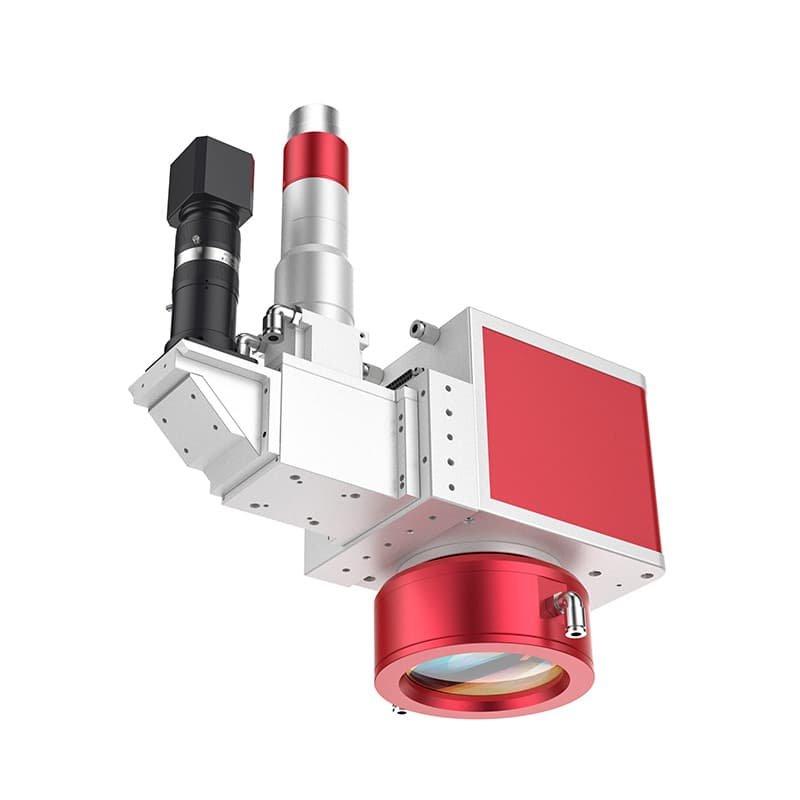

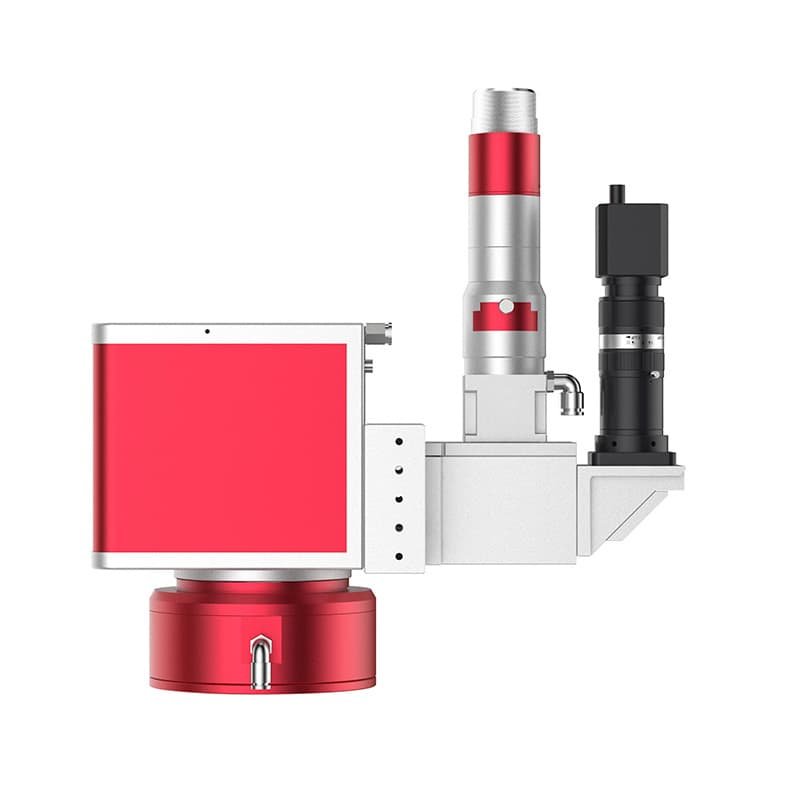

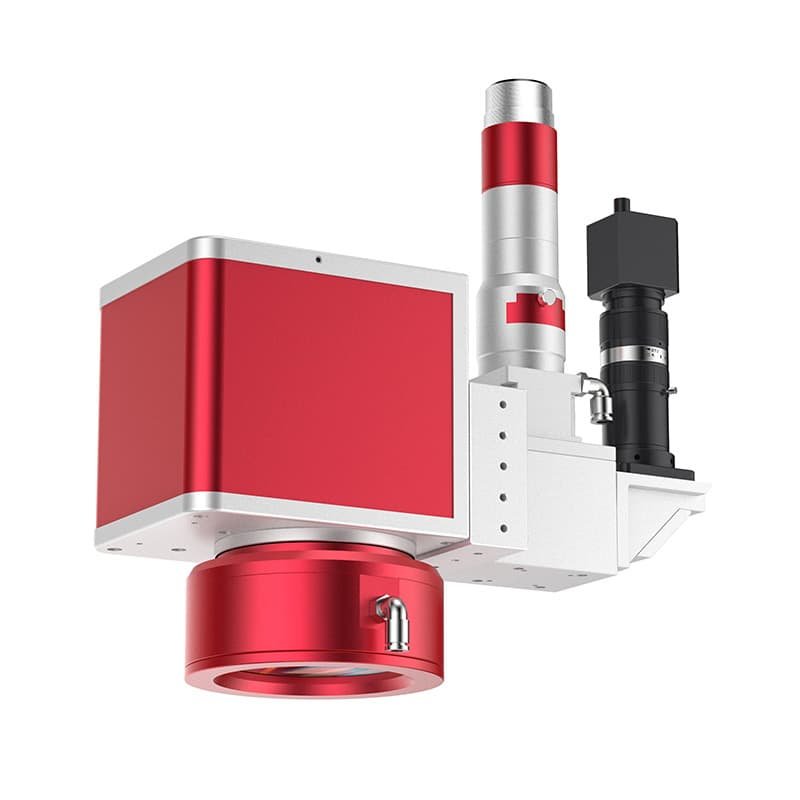

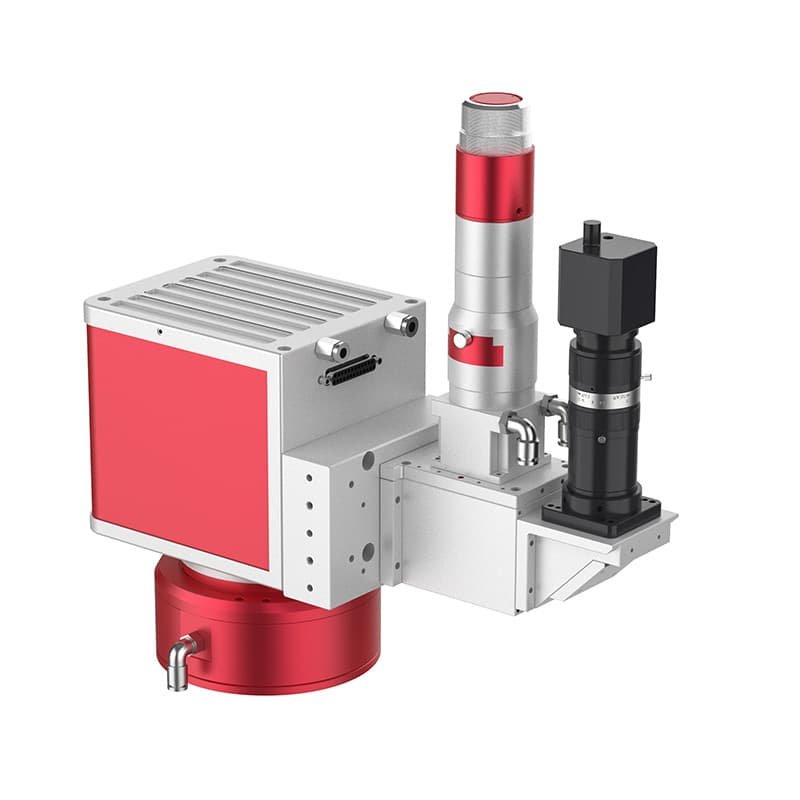

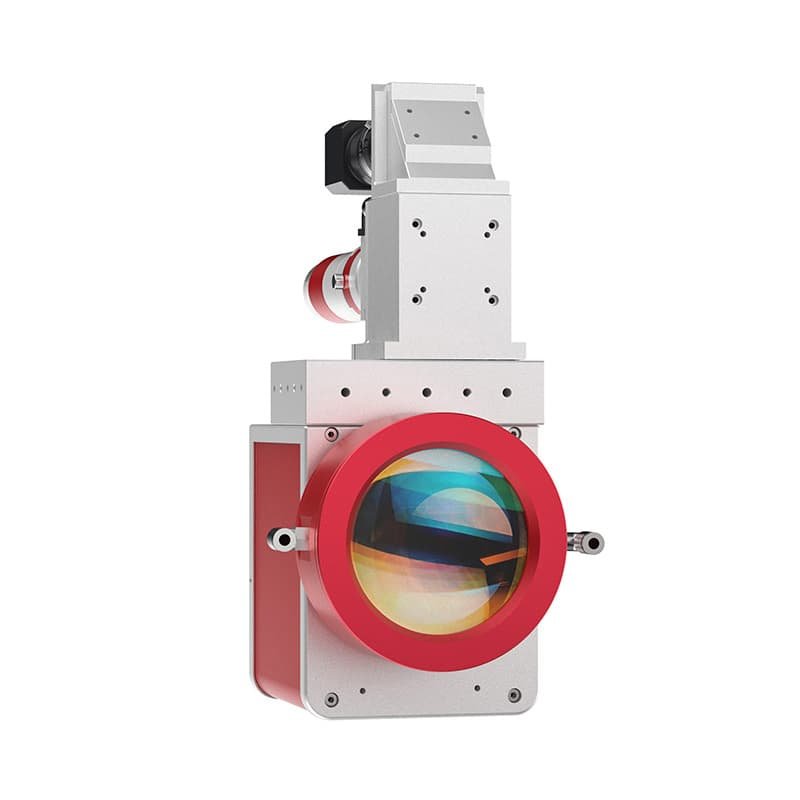

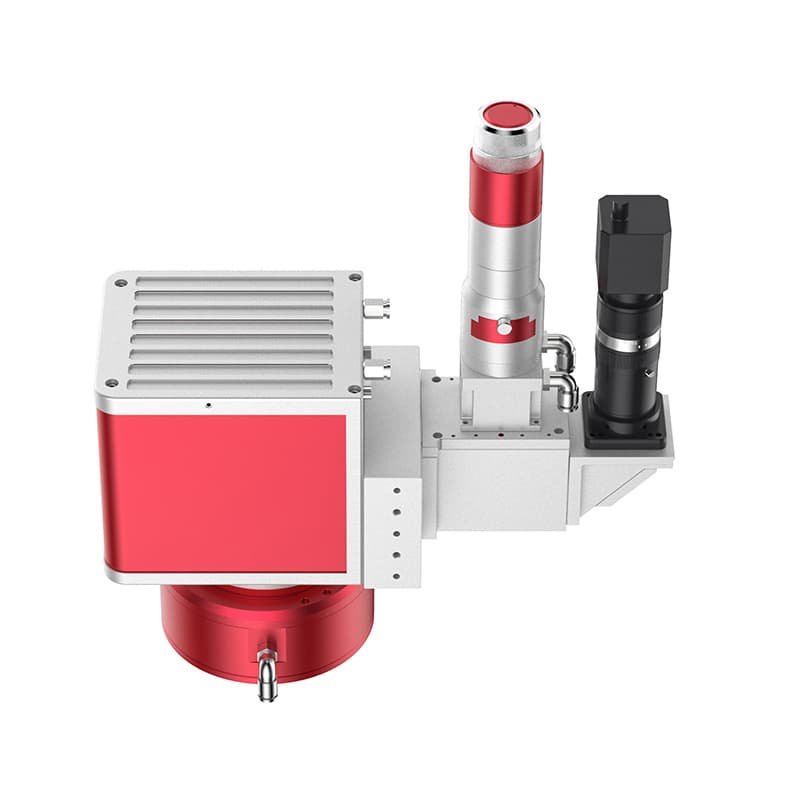

20 mm General-Purpose Welding Galvo Kit

Designed for new energy and precision spot welding applications, this versatile welding galvo system delivers reliable performance and high processing accuracy. It is ideal for demanding applications such as battery terminals, busbars, energy storage modules, motor stators, photovoltaic components, sensors, connectors, and precision metal parts.
Facebook
Twitter
LinkedIn

Product Advantages

● High Power Capability

Built on a high-performance architecture, the system supports laser power up to 8,000 W, meeting the demanding requirements of high-power, high-load, and continuous-duty welding applications in the new energy industry. It delivers excellent welding efficiency and performance across a wide range of challenging processing conditions.

● High Reliability

Backed by extensive long-term field applications and rigorous validation testing, the system offers mature technology and proven performance. Its stable operation under demanding industrial environments has made it a trusted and widely adopted solution for production applications.

● High Stability

The system provides stable and controllable welding performance with minimal power fluctuation and consistent molten pool formation. This helps reduce welding defects and ensures uniform processing quality, making it ideal for long-term continuous operation in automated production environments.

● High Precision

Optimized specifically for precision welding applications, the system delivers accurate weld positioning, excellent weld formation, and superior welding accuracy. It is ideally suited for high-precision spot welding applications such as power batteries, electronic components, sensors, and other precision assemblies.

Technical Parameters
Input Aperture (mm) 20
Scan Angle (rad) ±0.35
Nonlinearity (mrad) <0.5
Tracking Error (ms) 0.5
Repeatability RMS (μrad) <2
Gain Drift (ppm/K) <40
Zero Drift (μrad/K) <20
Long-Term Drift (8 Hours) (μrad) <100
Maximum Welding Speed (m/s) <4
Power Supply ±15 VDC / 3 A
Communication Protocol XY2-100
Collimating Lens F100 / F120 / F150
Focusing Lens F210 / F254 / F330
Laser Wavelength (nm) 1030–1090
Operating Temperature (°C) 25 ±10
Cooling Method Water Cooling
Cooling Water Flow Rate (L/min) >1.2
Supported Laser Power (W) 2000
Dimensions (L×W×H) (mm) 140 × 132 × 158
Weight (kg) 6.5
