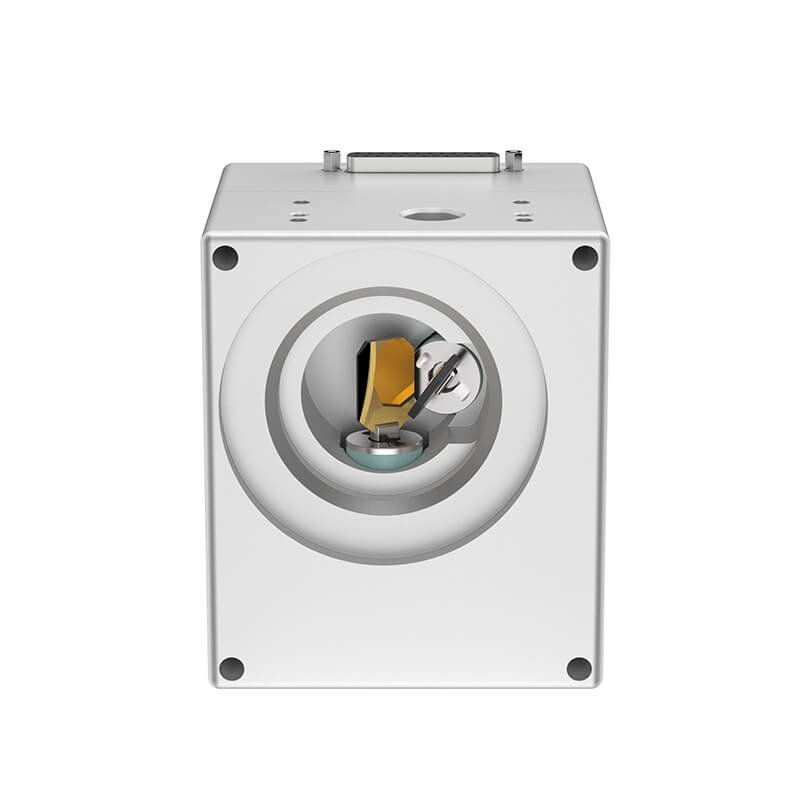

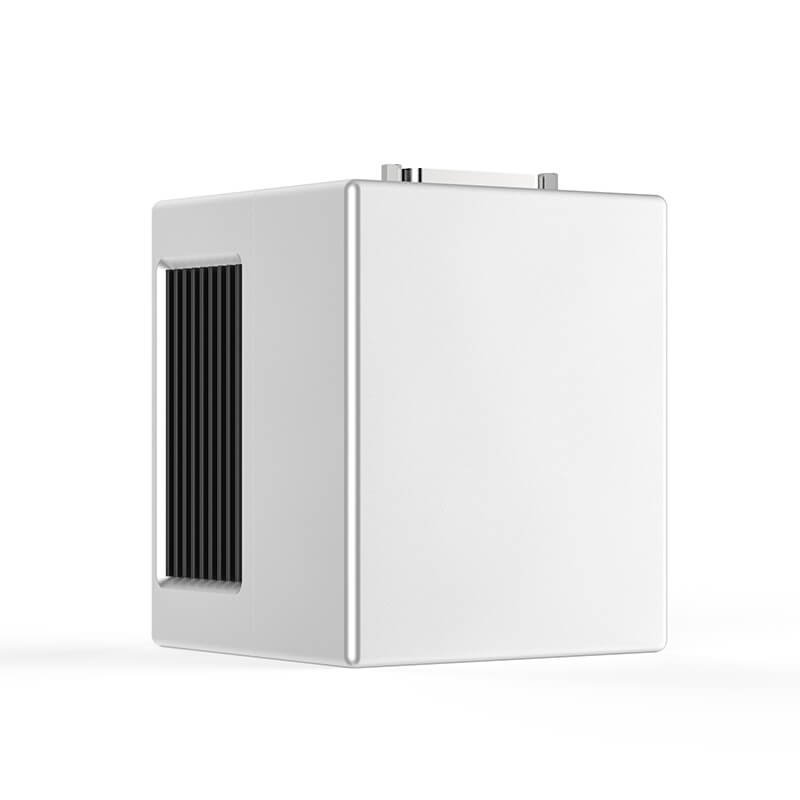

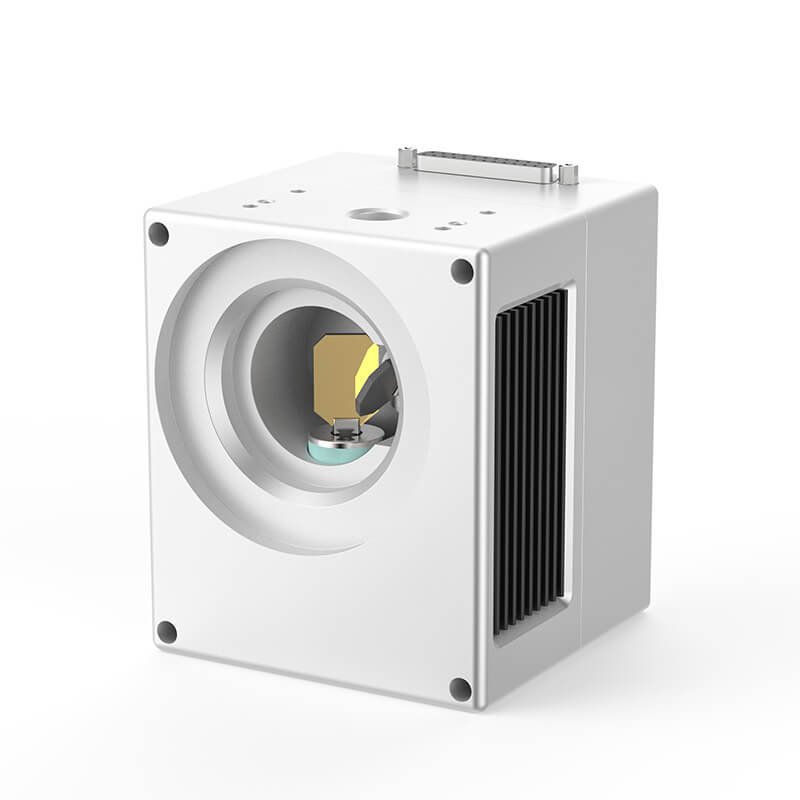

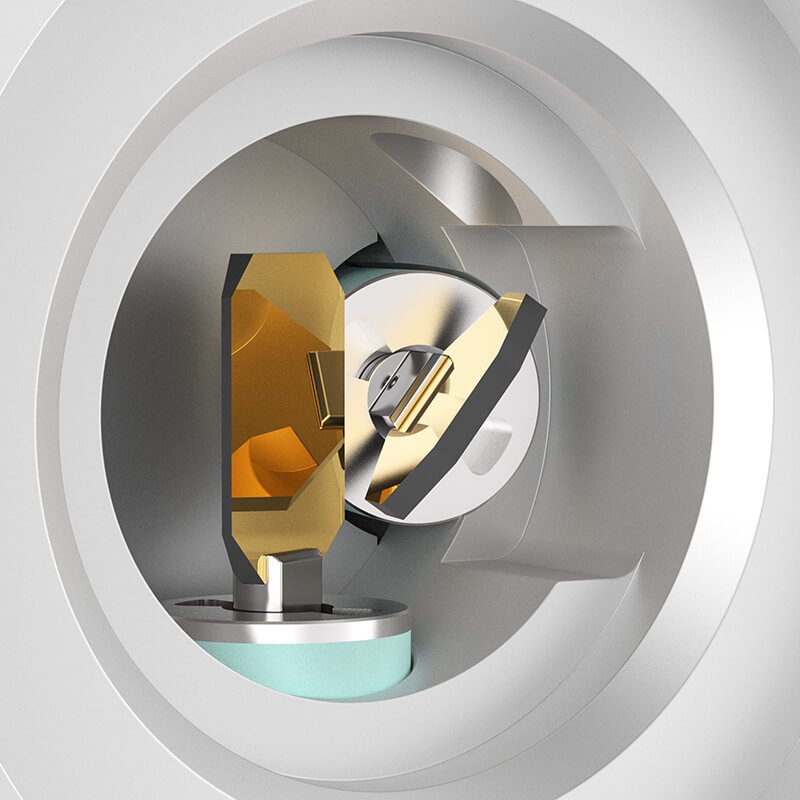

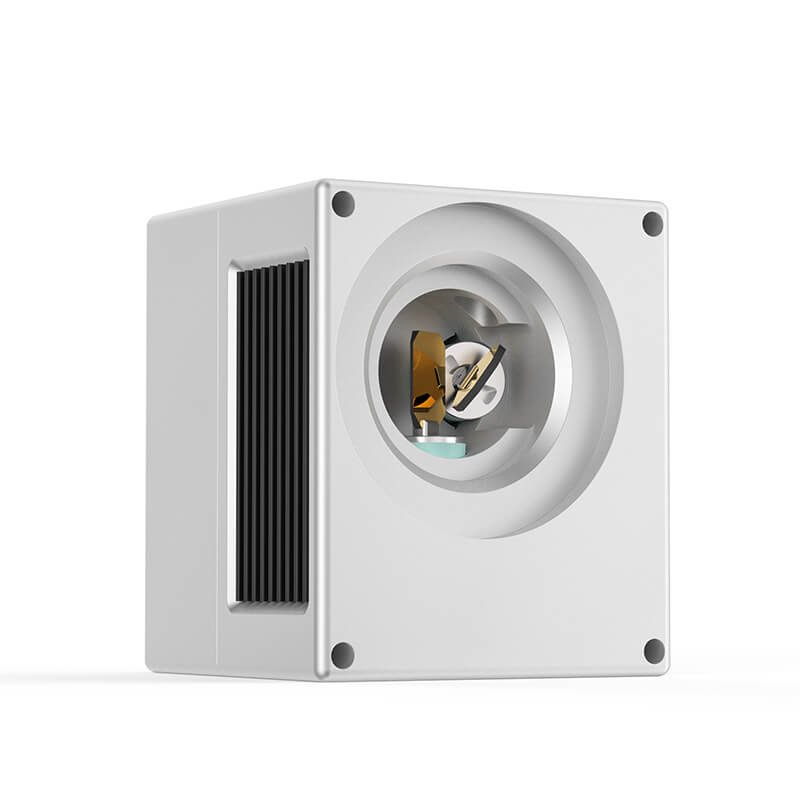

General-Purpose Galvo Scanner Series

Designed for laser marking and laser welding applications, this series serves entry- to mid-level processing needs and covers over 90% of common marking requirements. Combining reliable performance with competitive pricing, it offers one of the best value-to-performance ratios among laser scanning galvo systems available today.
Facebook
Twitter
LinkedIn

Product Advantages

● Cost-Effective Performance

Offering exceptional value, this series combines competitive pricing with many of the advanced features found in our high-end galvo systems. It delivers reliable performance without compromising quality, redefining the balance between affordability and capability.

● High Speed

Designed for fast and efficient laser processing, the system supports high-speed marking performance and meets the requirements of most standard laser applications.

● High Linearity

With excellent linearity performance, the system can achieve high processing accuracy using simple distortion and scaling correction, making it suitable for a wide range of applications.

● Ultra-Low Thermal Drift

Featuring low zero drift, gain drift, and long-term thermal drift characteristics, the system maintains stable performance during continuous operation, minimizing misalignment and ensuring reliable results in marking and welding applications.

● High Stability

Supported by a comprehensive quality control system and validated through extensive market applications, our products deliver consistent performance and reliability. Years of proven results have earned us strong customer trust and an excellent reputation within the laser industry.



Model 10C 12C 14B 16B 20B 30B
Input Aperture 10mm 12mm 14mm 16mm 20mm 30mm
Scan Angle ±0.35rad ±0.35rad ±0.35rad ±0.35rad ±0.35rad ±0.35rad
Nonlinearity <0.5mrad <0.5mrad <0.5mrad <0.5mrad <0.5mrad <0.5mrad
Tracking Error 0.2ms 0.22ms 0.25ms 0.3ms 0.5ms 0.7ms
Short Step Response 0.4ms 0.45ms 0.5ms 0.65ms 0.9ms 1ms
Repeatability (RMS) <2urad <2urad <2urad <2urad <2urad <3urad
Gain Drift <50ppm/K <50ppm/K <50ppm/K <50ppm/K <60ppm/K <60ppm/K
Zero Drift <30urad/K <30urad/K <30urad/K <30urad/K <30urad/K <30urad/K
8-hour Thermal Drift <0.1mrad <0.1mrad <0.15mrad <0.15mrad <0.15mrad <0.15mrad
Marking Speed <4m/s <2m/s <1.5m/s <1.5m/s <1m/s <2m/s
Positioning Speed <10m/s <10m/s <5m/s <4m/s <4m/s <3m/s
Power Supply ±15V/3A ±15V/3A ±15V/3A ±15V/3A ±15V/3A ±15V/5A
Input Signal XY2-100 XY2-100 XY2-100 XY2-100 XY2-100 XY2-100
Laser Wavelength 355/532/1064/10600nm 355/1064/10600nm 532/1064/10600nm 1064/9300/10600nm 1064/9300/10600nm 915/980/1064/10600nm
Operating Temperature 25±10°C
Dimension (mm) 114×96×94 116×99×97 158×132×140 158×132×140 158×132×140 195×150×171
Weight 1.51kg 1.68kg 2.94kg 2.94kg 3kg 5.1kg
